ADVANCED VEHICLE TECHNOLOGIES, Inc.

AVT-441
Hardware Revision Descriptions
Order Number Descriptions
Photos
Updated: 12 January 2020
Notes

General Description
DSI3 Boost device.  Two channels.
Designed to be used with the AVT-440 DSI3 & PSI5 Interface
.
There is no software or firmware related to this unit.

Hardware Configuration
One configuration option is currently available.
Both DSI3 channels are installed.
The order number is:  AVT-441-006.
This includes the AVT-441 DSI3 Boost board in a small enclosure.


PC Board Revision

PC Board Revision Notes

The revision of the PC board is noted in copper on the bottom of the board.
It only changes when the board is redesigned.
The "as built" revision is noted in the white "rev" block on the top of the board.

PC Board Revision A

November 2019.
Original board design.
Released for production as no changes were required.
Both DSI3 channels are populated.
For use only with AVT-440 rev. C2 and later running firmware version 0106 and later.

PC Board Revision xxx
dd mmm yyyy.
xxx.
xxx.


PC Board Revision xxx
dd mmm yyyy.
xxx.
xxx
.

PC Board Revision xxx
dd mmm yyyy.
xxx.
xxx
.

PC Board Revision xxx
dd mmm yyyy.
xxx.
xxx
.

PC Board Revision xxx
dd mmm yyyy.
xxx.
xxx
.


Order Number Descriptions


AVT-441-006 : Custom AVT-441 board, installed in small enclosure.
Status: Not normally a stock item.  Lead time approximately 1 week (depending on many factors).
Contact factory for current lead time.


Photos

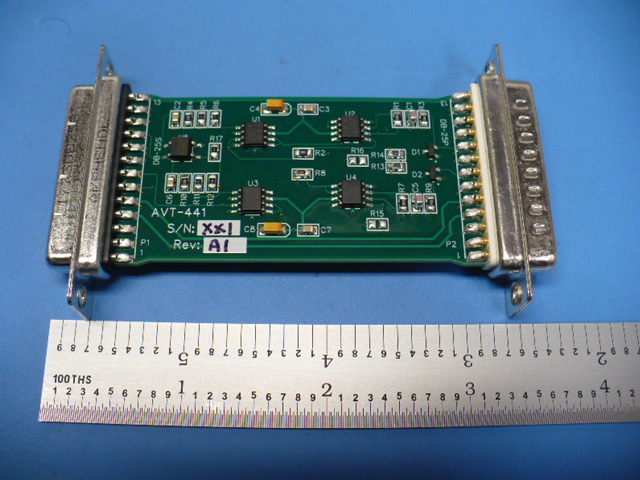

AVT-441 board only A

AVT-441 rev. "A1" board only, top.


AVT-441 board only B
AVT-441 rev. "A1" board only, top.

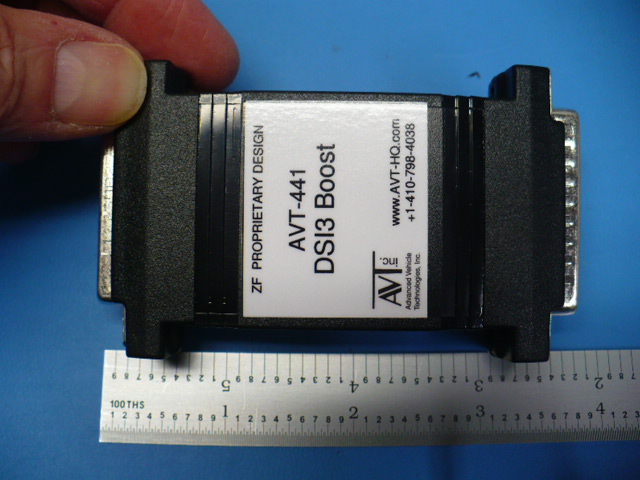

AVT-441 in enclosure
AVT-440 rev. "A1" board, in enclosure.
